Attention : support for WAPT 1.8.2 ended on June the 30th 2022.

There are known vulnerabilities in WAPT dependencies in WAPT 1.8.2 branch. Please upgrade to the latest supported version. CVE listing (non exhaustive) :
  • * python engine : python 2.7 (CVE-2020-10735, CVE-2015-20107, CVE-2022-0391, CVE-2021-23336, CVE-2021-3177, CVE-2020-27619, CVE-2020-26116, CVE-2019-20907, CVE-2020-8492, etc.)
  • * cryptography : openssl : CVE-2022-2068, CVE-2022-1292, CVE-2022-0778, CVE-2021-4160, CVE-2021-3712, CVE-2021-23841, CVE-2021-23840, CVE-2021-23839, CVE-2020-1971, CVE-2020-1968, CVE-2019-1551
  • * python dependencies : cryptography (CVE-2020-36242, CVE-2020-25659), eventlet (CVE-2021-21419), jinja2 (CVE-2020-28493), psutil (CVE-2019-18874), waitress (CVE-2022-31015), lxml (CVE-2021-4381, CVE-2021-28957, CVE-2020-27783, CVE-2018-19787), ujson (CVE-2022-31117, CVE-2022-31116, CVE-2021-45958), python-ldap (CVE-2021-46823)

Replicating a repository to preserve the bandwidth on remote sites

When WAPT is used on bandwidth limited remote sites, it makes sense to have a local device that will replicate the main WAPT repository to reduce the network bandwidth consumed when deploying updates on your remote devices.

With remote repositories, WAPT remains a solution with a low operating cost because you don’t have to implement high bandwidth fiber links to take advantage of WAPT.

Replicating WAPT repositories

Replicating WAPT repositories

It works as follows:

  • a small form factor and no maintenance appliance with the role of secondary repository is deployed on the local network of each remote site; a workstation can also be used, although it may not be up and running if you want to connect to it;

  • the remote repository replicates the packages from the main repository and other repositories;

  • the WAPT clients connect in priority with the repository that is the closest to them, the local repository;

Hint

The former method used to sync repositories was Syncthing and that method is available both for the Community and the Enterprise versions of WAPT.

You can find the old documentation here: (Deprecated) Replicating repositories with Syncthing.

The method explained below is for the Enterprise version only.

WAPT Agent replication role

New in version WAPT: 1.8 Enterprise

Starting with WAPT 1.8, repository replication can be enabled using a WAPT agent installed on an existing machine, a dedicated appliance or Virtual Machine.

The replication role is deployed through a WAPT package that enables the Nginx web server and configures scheduling, packages types, packages sync, and much more.

This feature allows WAPT agents to find dynamically their closest available WAPT repository from a list of rules stored on the WAPT server.

Replication behavior

Repository replication in WAPT is now handled by WAPT agents natively (Enterprise versions only).

It is based on a sync.json file which indexes every files present in these folders:

  • wapt;

  • waptwua;

  • wapt-host;

Enabling replication has the following effects:

  • once enable_remote_repo is enabled on a WAPT agent, it will sync packages locally inside the local_repo_path folder;

  • it adds the WAPT agent in the Repositories tab as a Remote repository, enabling new actions such as Force Sync or Check files;

  • by default, only the wapt folder is synchronized, you can select which folder to sync by adding up elements in remote_repo_dirs parameters;

  • synchronization period can be configured with local_repo_time_for_sync_start and local_repo_time_for_sync_stop parameters;

  • bandwidth allocated to sync can be configured with local_repo_limit_bandwidth;

Every parameters of WAPT repository sync must be set in the [repo-sync] section of the WAPT agent’s wapt-get.ini configuration file.

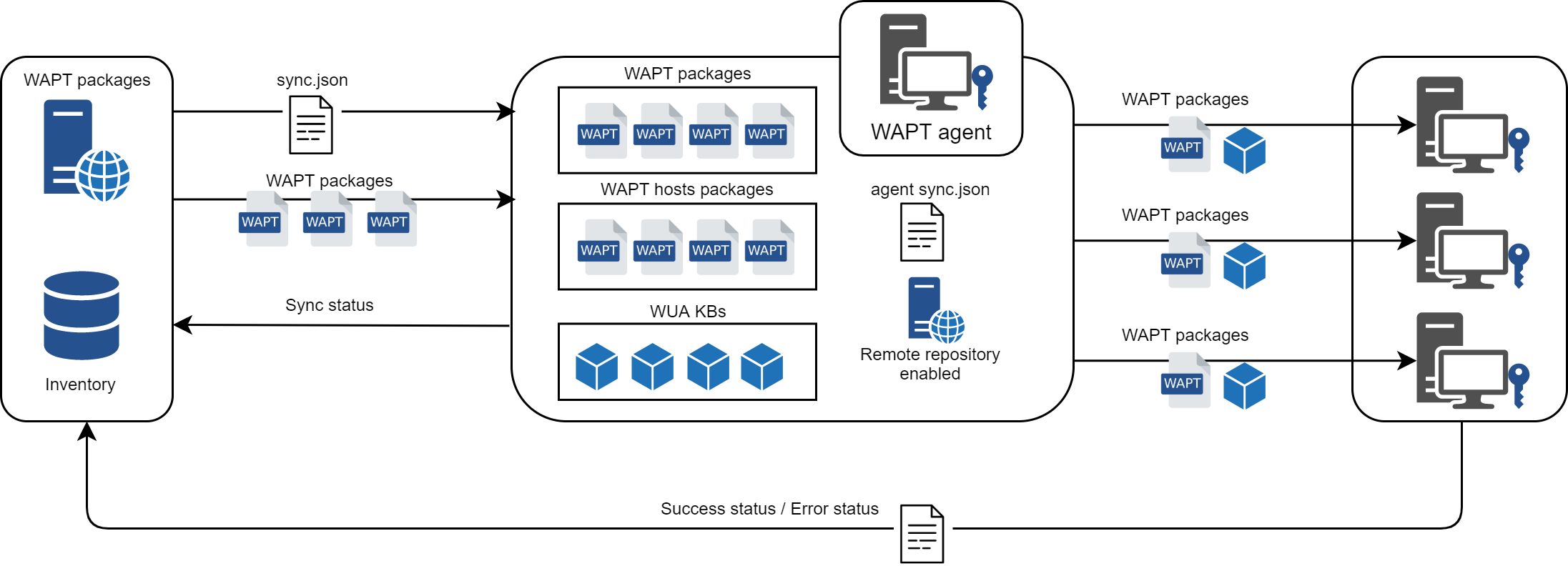

WAPT agent replication behavior

Replication role behavior

Enabling replication on WAPT Agent

To enable replication on an existing agent (Linux/Windows) you need to deploy a WAPT package. It’s role is to:

  • install and enable the Nginx web server;

  • configure nginx virtualhost;

  • enable remote repository configuration in wapt-get.ini;

A ready-to-use WAPT package is available in our public store to enable repository replication on Windows or Linux WAPT agents: https://store.wapt.fr/store/tis-remote-repo-conf.

WAPT Agent replication configuration

WAPT Agent replication configuration is set in the [repo-sync] section in the wapt-get.ini configuration file of the WAPT agent:

Options

Mandatory

Example value

Definition

enable_remote_repo

Yes

True

Enables remote repository sync connections.

local_repo_path

Yes

/var/www/

Set local packages root repository path

local_repo_time_for_sync_start

No

22:30

Set sync start time (HH:MM / 24h format)

local_repo_time_for_sync_end

No

05:30

Set sync stop time (HH:MM / 24h format)

local_repo_sync_task_period

No

25

Set sync period (minutes)

local_repo_limit_bandwidth

No

2

Set sync allowed bandwidth (Mbits/s)

remote_repo_dirs

No

wapt,waptwua,wapt-host

Set synced folders (default: wapt,waptwua)

Below is an example of wapt-get.ini:

[global]
...
use_repo_rules = True

[repo-sync]
enable_remote_repo = True
local_repo_path = D:\WAPT\
local_repo_time_for_sync_start = 20:30
local_repo_time_for_sync_end = 05:30
local_repo_sync_task_period = 25
local_repo_limit_bandwidth = 4
remote_repo_dirs = wapt,waptwua,wapt-host

WAPT Server replication configuration

The WAPT Server needs to be aware of repositories to sync in the [options] section of its waptserver.ini located in /opt/wapt/conf/

Options

Example value

Definition

remote_repo_support

True

Enables remote repository sync server side (sync.json)

Then we must restart both waptserver and wapttask:

systemctl restart waptserver wapttask

Repository rules

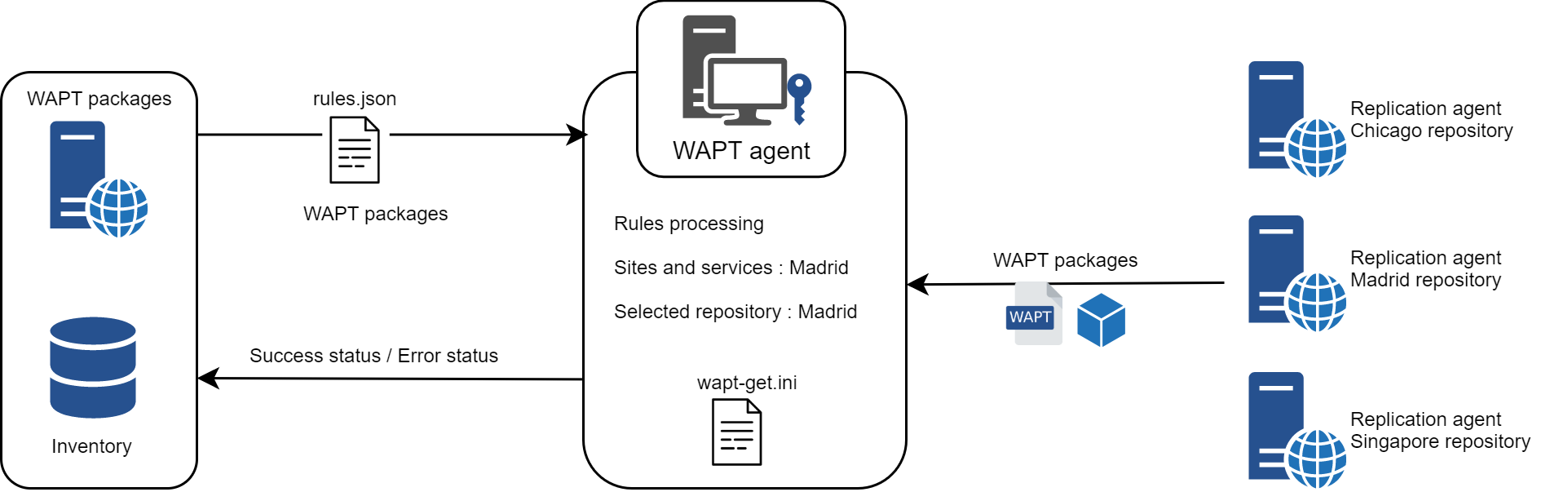

Repository rules behavior

By enabling repository rules support, the WAPT agents will automatically retrieve their rules.json file from the WAPT server.

The rules.json file is a signed .JSON file that contains a list of sorted rules to apply to the WAPT agent, so to redirect its downloads from the most appropriate repository.

If no rules can be matched, WAPT agent fallbacks onto the repo_url settings of the WAPT server wapt-get.ini configuration file.

WAPT agent replication behavior

Repository rules behavior

Enabling repository rules

Repository rules are configured in WAPT Console.

Rules can be based on several parameters:

Options

Example value

Definition

Domain name

ad.domain.lan

Rule based on Active Directory domain name

Domain sites and services

Paris-HQ

Rule based on Active Directory Sites and Services

Agent IP

192.168.85.0/24

Rule based on Agent IP sub-network

Public IP

256.89.299.22/32

Rule based on Public IP (NATed hosts)

Hostname

desktop-04feb1

Rule based on hostname

Adding a rule in the WAPT Console

In Repositories, click on the Add rule button. The following window appears:

..figure:: create_new_rule.png

:align:center

You can then choose from the different above parameters and affect values to a specific secondary WAPT repository. The option No Fallback will prevent from falling back to the main WAPT server and will avoid potential network congestion.

The rules are applied from top to bottom, and the first rule that matches the conditions overrides all the other rules below.

Using repository rules on WAPT agents

Warning

If you have configured GeoIP redirects on Nginx, you should disable it as it might conflicts with repository rules.

To enable WAPT Agent repository rules, you must enable this setting in the [global] section of wapt-get.ini configuration of the WAPT agent:

Options

Mandatory

Example value

Definition

use_repo_rules

No

True

Enables repository rules usage

Below is an example of wapt-get.ini:

[global]
...
use_repo_rules = True
