The WAPT Server having been successfully installed, now we will install the WAPT Console.

The WAPT management Console

Attention

If you have already generated the WAPT Agent and deployed the Agent on your Administrator’s workstation, then launch the WAPT Console.

Note

  • Managing WAPT is done mainly via the WAPT Console installed on the Administrator’s workstation.

  • It is recommended that the Administrator’s computer be joined to the Organization’s Active Directory.

  • The host name of the Administrator’s workstation MUST NOT be longer than 15 characters. This is a limit of sAMAccountName attribute in Active Directory.

  • The Administrator’s computer will become critical for WAPT administration and WAPT package testing.

  • If DNS records are properly configured, you should be able to access the WAPT web interface by visiting https://srvwapt.mydomain.lan.

  • As of 2024-01-09, the WAPT Console only installs on Windows.

Hint

It is highly recommended to use the Console on a dedicated management host.

Warning

The WAPT Console MUST NOT be installed on your Windows based WAPT Server.

The WAPT Console MUST be installed on the workstation from which you manage your network.

For installing the WAPT Console, download waptsetup.exe from Tranquil IT on the WAPT Server.

  • Rename the file waptsetup-tis.exe.

  • Copy to C:\wapt\waptserver\repository\wapt.

You may now go on downloading and launching the installation of the WAPT Console on the Administrator’s computer.

Go to next step, the WAPT Console is already on your WAPT Server.

The WAPT Server interface in a web browser

The WAPT Server interface in a web browser

  • If DNS records are properly configured, you should be able to access the WAPT web interface by visiting: https://srvwapt.mydomain.lan.

  • Click on WAPTSetup link on the right-hand side of the WAPT Server web page.

Installing the WAPT Agent on the Administrator’s computer

Attention

If the WAPT Agent is not compiled and installed on your computer, you need to run de WAPT Agent installer to open and configure the WAPT Console.

Choosing the language for deploying the WAPT installer
  • Click on OK to go on to the next step.

Accepting the WAPT license terms
  • Accept the licence terms and click on Next to go to next step.

  • Choose additional configuration tasks (leave the default if not sure).

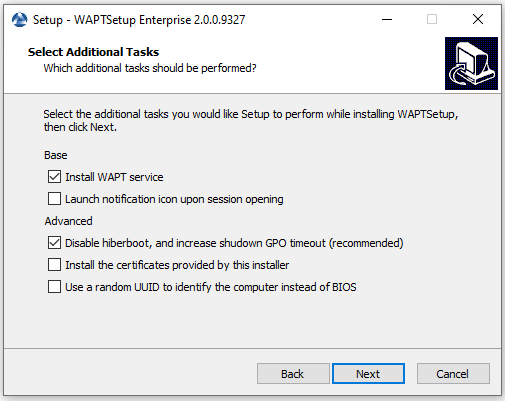

Choosing the WAPT Agent installer options

Choosing the WAPT Agent installer options

Available options of the WAPT Agent installer

Settings

Description

Default value

Install WAPT service checkbox

Enables the WAPT service on this computer.

Checked

Launch notification icon upon session opening checkbox

Launches the WAPT Agent in systray on host startup.

Not checked

Disable hiberboot, and increase shutdown GPO timeout (recommended) checkbox

Disables Windows fast startup for stability, it increases the timeout for the WAPT Exit utility.

Checked

Install the certificates provided by this installer checkbox

Installs Tranquil IT certificate on this computer.

Not checked

Use a random UUID to identify the computer instead of BIOS checkbox

For more information, check the documentation on BIOS UUID bugs

Not checked

  • Set up the WAPT Server URL.

Hint

Here, two choices become available to you.

Choosing the WAPT repository and the WAPT Server

Choosing the WAPT repository and the WAPT Server

  • Choose the WAPT repository and the WAPT Server; click Next.

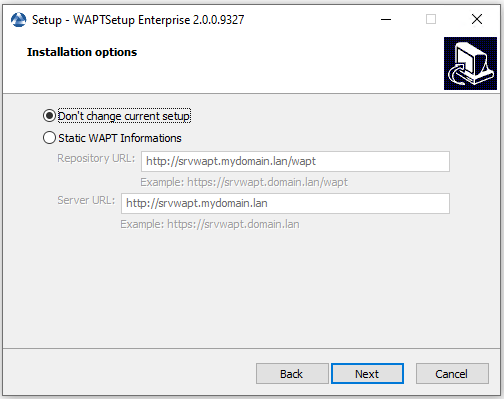

  • If the WAPT Console or the WAPT Agent is already installed:

    • Check Don’t change current setup, then click Next.

The WAPT repository and the WAPT Server are already set

The WAPT repository and the WAPT Server are already set

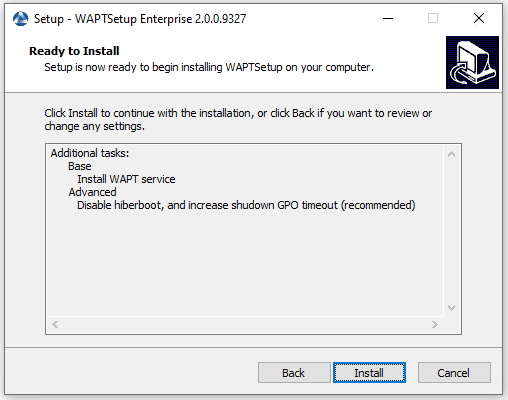

  • Get a summary of the WAPT Console installation.

Summary of the WAPT installation abstract

Summary of the WAPT installation abstract

  • Click Install to launch the installation, wait for the installation to complete, then click on Finish (leave default options).

Dialog box showing the WAPT installation in progress Installation Wizard has finished
  • Uncheck Show installation documentation.

Starting the WAPT Console

  • Launch the WAPT Console:

    • By looking for the binary.

      C:\Program Files (x86)\wapt\waptconsole.exe

    • Or using the Start Menu.

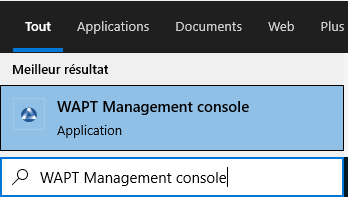

    Launching the WAPT Console from the Windows Start Menu

    Launching the WAPT Console from the Windows Start Menu

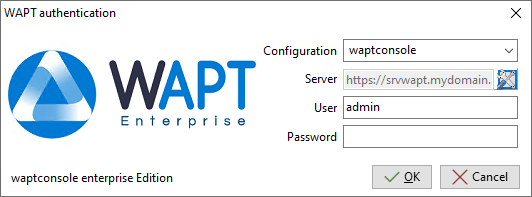

  • Log into the WAPT Console with the SuperAdmin login and password.

    The WAPT Console authentication window

    The WAPT Console authentication window

If you have any issue logging into the WAPT Console, please refer to the FAQ: Error message when opening the WAPT Console.

It is recommended to launch the WAPT Console with a Local Administrator account to enable local debugging of WAPT packages.

For Enterprise version, it is possible to authenticate with Active Directory.

First start after the WAPT Server installation

Hint

On first start, you MUST start the WAPT Console with elevated privileges. Right-click on the WAPT Console binary ‣ Start as Local Administrator.

Certificate affectation

Note

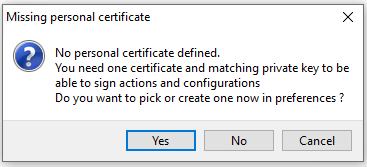

A message may appear indicating that no personal certificate has been defined.

WAPT personal certificate not found in the WAPT Console

WAPT personal certificate not found in the WAPT Console

  • Select Yes

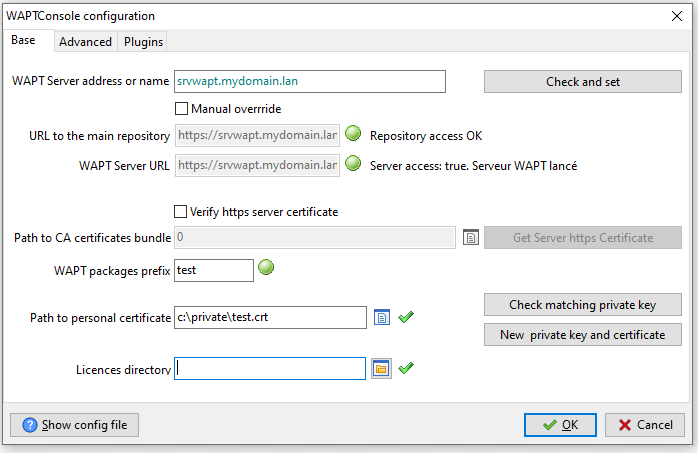

Window for the basic configuration of the WAPT Console

Window for the basic configuration of the WAPT Console

Packet prefix definition

Note

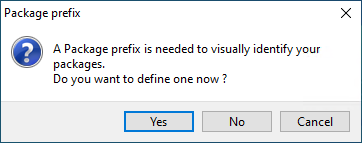

A message may appear indicating that no package prefix has been defined.

Dialog box informing that no prefix has been set in the WAPT configuration

Dialog box informing that no prefix has been set in the WAPT configuration

  • Select Yes

  • Set your packages prefix on WAPT packages prefix

Window for the basic configuration of the WAPT Console

Window for the basic configuration of the WAPT Console

waptagent.exe errors

Note

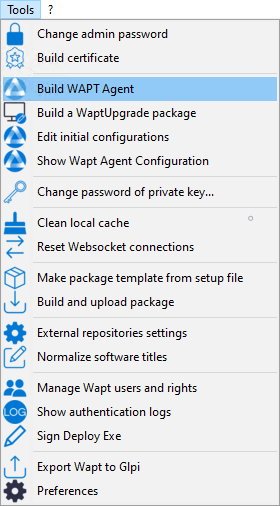

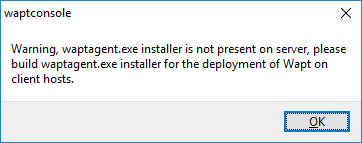

A message may appear indicating that your WAPT Agent version is obsolete or not yet present.

Dialog box informing that the WAPT Agent is not present on the WAPT Server

Dialog box informing that the WAPT Agent is not present on the WAPT Server

If the administrator’s certicate existing, it’s possible to generating new WAPT Agent by clicking on Yes.

Also click on No and generate the administrator’s certicate.

Activating a WAPT licence

Note

With WAPT, Discovery and Enterprise versions have different licences.

Hint

To activate the licence, use the licence.lic file provided by our sales department.

  • In the WAPT Console, click on the ? tab:

More information tab in the WAPT Console
  • Then choose Licences:

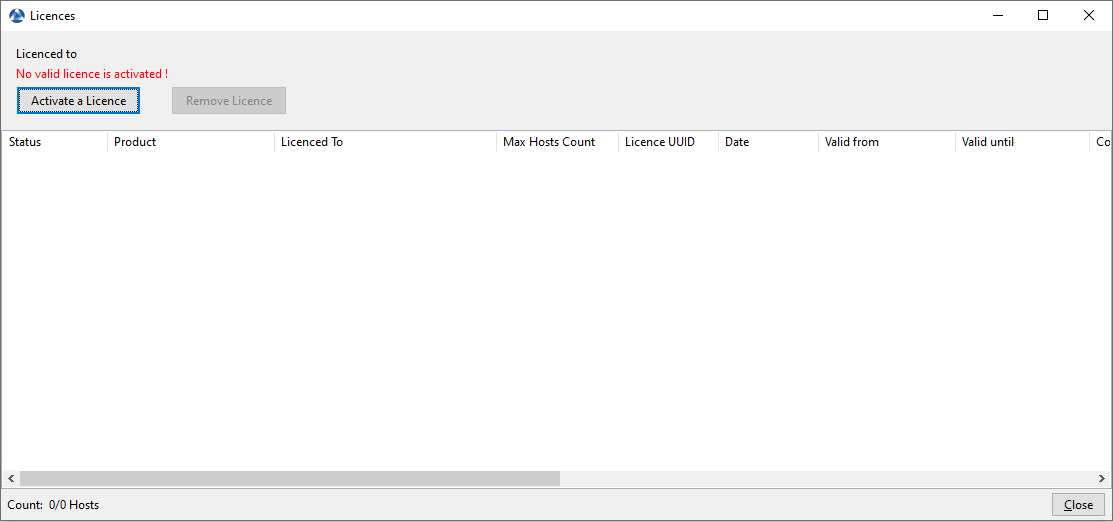

Window listing no subscribed WAPT licences in the WAPT Console

Window listing no subscribed WAPT licences in the WAPT Console

  • Finally, select your licence.lic and click Open:

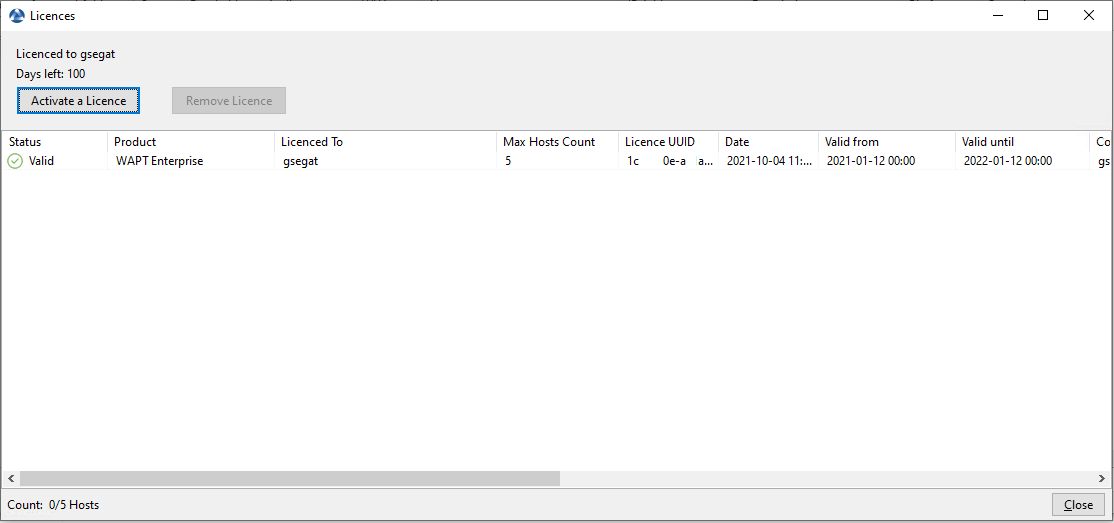

Window showing an activated licence in the WAPT Console

Window showing an activated licence in the WAPT Console

Removing a WAPT licence

  • In the WAPT Console, click on the ? tab:

More information tab in the WAPT Console
  • Then choose Licences:

Window listing no subscribed WAPT licences in the WAPT Console

Window listing no subscribed WAPT licences in the WAPT Console

  • Finally, select the row and click Remove License:

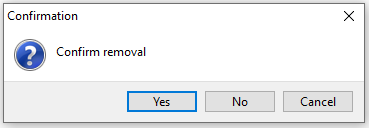

Confirmation window to remove a licence from the WAPT Console

Confirmation window to remove a licence from the WAPT Console

  • When confirmed, the selected licences are removed:

Window listing no subscribed WAPT licences in the WAPT Console

Window listing no subscribed WAPT licences in the WAPT Console

License location

licence.json are stocked on the WAPT Server in the following location:

/var/www/licences.json

License error

Expired licence

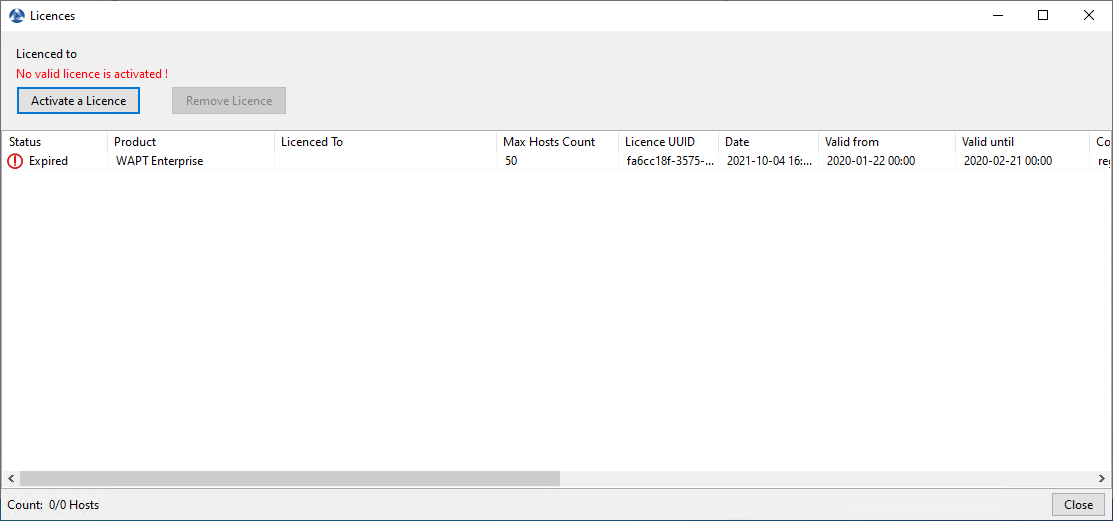

If a licence has expired, then its status displays Expired.

Window showing an expired licence in the WAPT Console

Window showing an expired licence in the WAPT Console

Old licence location

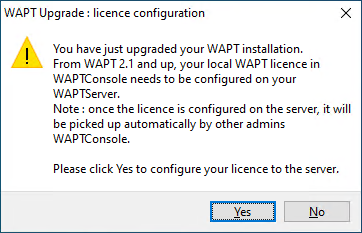

When installaing the WAPT Console, if licence is located in an old location, this error appear will show:

WAPT licence error message when upgrading WAPT to 2.1

WAPT licence error message when upgrading WAPT to 2.1

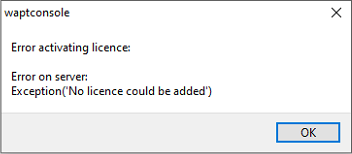

Error activating a WAPT licence

This error is due to a problem with the post-configuration script and a special configuration of NGINX.

Dialog box informing an error occured while activating a WAPT licence

Dialog box informing an error occured while activating a WAPT licence

3 points are to be checked.

  1. Check whether /etc/nginx/sites-enabled/wapt.conf is a symbolic link of /etc/nginx/sites-available/wapt.conf, using this command:

ls -l /etc/nginx/sites-enabled/wapt.conf
  • If the symbolic link exists, the output should be:

lrwxrwxrwx 1 root root 36 Jun  9 09:35 /etc/nginx/sites-enabled/wapt.conf --> /etc/nginx/sites-available/wapt.conf
  • If the symbolic link does not exist, then remove /etc/nginx/sites-enabled/wapt.conf and create a new symbolic link:

rm /etc/nginx/sites-enabled/wapt.conf

ln -s /etc/nginx/sites-available/wapt.conf /etc/nginx/sites-enabled/wapt.conf
  1. Check whether the file licences.json is present in location section of /etc/nginx/sites-enabled/wapt.conf:

location ~ ^/(wapt/waptsetup-tis.exe|wapt/waptagent.exe|wapt/waptdeploy.exe|sync.json|rules.json|licences.json)$ {
        add_header Cache-Control "store, no-cache, must-revalidate, post-check=0, pre-check=0";
        add_header Pragma "no-cache";
        root "/var/www";
    }
  • If the licences.json file exist, then restart Nginx:

systemctl restart nginx
  • Then, add the licences.json file in location section of /etc/nginx/sites-enabled/wapt.conf and restart NGINX.

systemctl restart nginx
  1. If you get an error, empty /var/www/licences.json:

> /var/www/licences.json

Generating the Administrator’s certificate for signing WAPT packages

Hint

  • The name of the private key is wapt-private.pem.

  • The name of the public certificate signed with the private key is wapt-private.crt.

Private key wapt-private.pem

Attention

The wapt-private.pem file is fundamental for security. It MUST be stored in a safe place and correctly protected.

The wapt-private.pem file is the private key, it is located by default in the C:\private folder of the Administrator workstation and is password protected.

This private key will be used along with the certificate to sign packages before uploading them onto the WAPT repository.

Danger

The wapt-private.pem file MUST NOT be stored on the WAPT Server.

Public certificate : wapt-private.crt

The wapt-private.crt file is the public certificate that is used along with the private key. It is by default created in the C:\private folder of the Administrator, copied and deployed in C:\Program Files (x86)\wapt\ssl on the Windows desktops or in /opt/wapt/ssl on the Linux and MacOS devices managed by the Administrator via a WAPT package, a GPO or an Ansible role.

This certificate is used to validate the signature of packages before installation.

Attention

  • If the public certificate used on the WAPT Console is not derived from the private key used for generating the WAPT Agents, the WAPT Console will not see the WAPT Agents and you will not be able to perform any action on any WAPT Agent.

  • The child certificates of private keys are functional for interactions.

Generating a certificate to use with WAPT

In the WAPT Console go to Tools ‣ Build certificate.

Building a self-signed certificate

Building a self-signed certificate

Note

The WAPT Enterprise version features additional options With WAPT Enterprise, you can create a Master key with a Certificate Authority flag that can both sign packages and sign new certificates.

Hint

In order to create new signed certificates for delegated users, please refer to creating a new certificate.

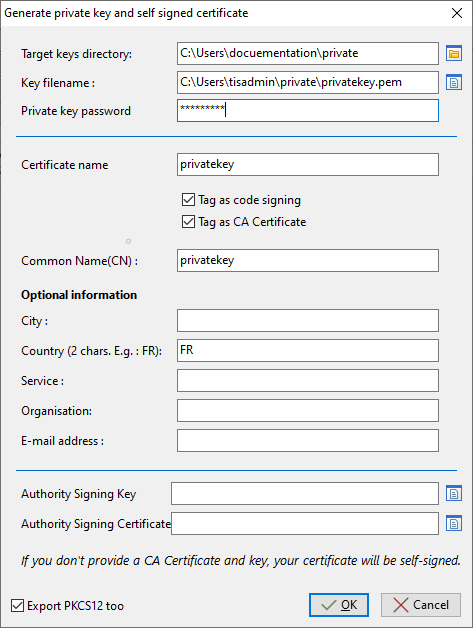

Creating a self-signed certificate for the WAPT Enterprise version

Creating a self-signed certificate for the WAPT Enterprise version

Certificate informations

Value

Description

Required

Enterprise

Target key directory

Defines the folder where the private key and the public certificate will be stored.

feature available

Key filename

Defines the name of the .pem private key.

feature available

Private key password

Defines the password for unlocking the key.

feature available

Confirm password

Confirms the password for unlocking the key.

feature available

Certificate name

Defines the name of the .crt certificate.

feature available

Tag as code signing

Defines whether the certificate/ key pair will be allowed to sign software packages.

feature available

feature additional

Tag as CA certificate

Defines whether the certificate can be used to sign other certificates (main or intermediate Certificate Authority).

feature available

feature additional

Common Name (CN)

Defines the Common Name to register in the certificate.

feature available

City

Defines the name of the certificate holder’s city to register in the certificate.

feature not available

Country (2 chars. E.g : FR)

Defines the name of the certificate holder’s country (FR, EN, ES, DE …) to register in the certificate.

feature not available

Service

Defines the name of certificate holder’s service or organizational department to register in the certificate.

feature not available

Organization

Defines the name of the certificate holder’s Organization to register in the certificate.

feature not available

E-mail address

Defines the email address of the certificate holder to register in the certificate.

feature not available

Authority Signing Key

Defines the key (.pem) of the CA.

feature not available

feature additional

Authority Signing Certificate

Defines the certicate (.crt) of the CA.

feature not available

feature additional

Export PKCS12

Forces the creation of the *.p12 certicate in the Targets keys directory

feature not available (recommended)

Additional details are stored in the private key. This information will help with identifying the origin of the certificate and the origin of the WAPT package.

Hint

The password complexity MUST comply with your Organization’s security requirements (visit the ANSSI website for recommendations on passwords).

Danger

  • The path to your private key MUST NOT be in the installation path of WAPT (C:\Program Files (x86)\wapt).

  • If your key is stored in C:\Program Files (x86)\wapt, your Administrator’s private key will be deployed on your clients, ABSOLUTELY A NO GO!.

  • Finally, the wapt-private.pem file MUST NOT be stored on the WAPT Server.

  • Click on OK to go on to the next step.

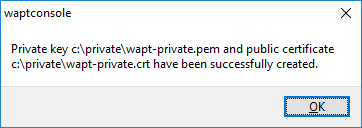

    If everything has gone well the following message will appear:

Dialog box informing the certificate has been generated successfully

Dialog box informing the certificate has been generated successfully

  • Click on OK.

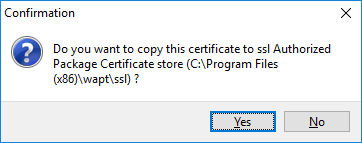

Dialog box requesting confirmation of the copy of the certificate in the ssl folder in the WAPT Console

Dialog box requesting confirmation of the copy of the certificate in the ssl folder in the WAPT Console

  • Click on Yes to copy the newly generated certificate in the folder C:\Program Files (x86)\wapt\ssl on Windows or /opt/wapt/ssl on Linux or macOS. This certificate will be picked up during the compilation of the WAPT Agent and deployed on the client computers.

You may go on to the next step and Building the WAPT Agent installer.

Building the WAPT Agent installer

The waptagent binary is an InnoSetup installer.

Once the WAPT Console has been installed on the Administrator computer, we have all files required to build the WAPT Agent installer:

  • Files that will be used during building of the WAPT Agent are located in C:\Program Files (x86)\wapt.

  • Installer source files (.iss files) are located in C:\Program Files (x86)\wapt\waptsetup.

Hint

Before building the WAPT Agent, please verify the public certificate(s) in C:\Program Files (x86)\wapt\ssl.

If you wish to deploy other public certificates on your Organization’s computers that are equipped with WAPT, you will have to copy them in that folder.

Danger

DO NOT COPY the private key of any Administrator in C:\Program Files (x86)\wapt.

This folder is used when building the WAPT Agent and the private keys would then be deployed on all the computers.

  • In the WAPT Console, go to Tools ‣ Build WAPT Agent

Generating the WAPT Agent from the WAPT Console

Generating the WAPT Agent from the WAPT Console

Hint

Before building the WAPT Agent, you need to choose how it will identify itself with the WAPT Server.

Choosing the mode to uniquely identify the WAPT Agents

In WAPT you can choose the unique identification mode of the WAPT Agents.

When a WAPT Agent registers the WAPT Server MUST know if it is a new host or if it is a host that has already been registered.

For this, the WAPT Server looks at the UUID in the inventory.

WAPT offers 3 modes to help you distinguish between hosts, it is up to you to choose the mode that best suits you.

Attention

After choosing a mode of operation it is difficult to change it, think carefully!

This mode of operation makes it possible to identify the hosts in the WAPT Console in a physical manner.

If you replace a computer and give the new computer the same name as the previous one, you will have two computers that will appear in the WAPT Console since you will have physically two different computers.

Note

Some vendors do inadequate work and assign the same BIOS UUIDs to entire batches of computers. In this case, WAPT will only see one computer!!!

Build

  • In the WAPT Console, go to Tools ‣ Build WAPT Agent

Generating the WAPT Agent from the WAPT Console

Generating the WAPT Agent from the WAPT Console

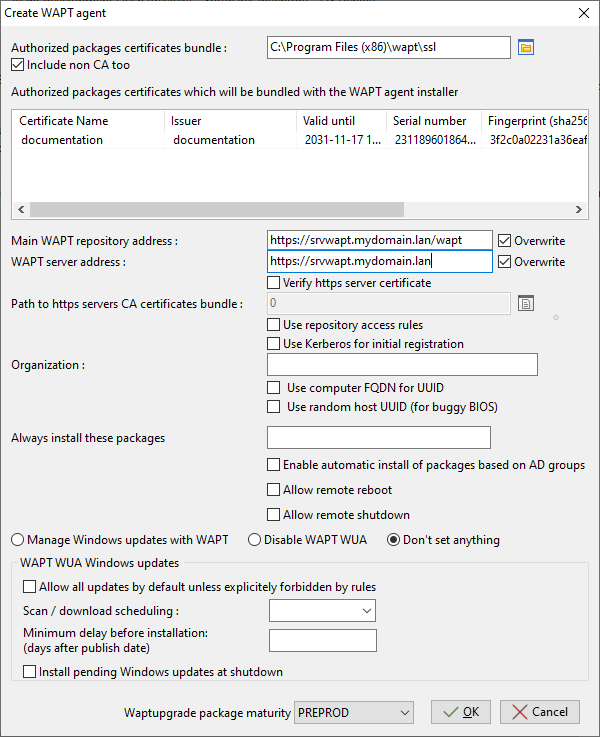

  • Fill in the informations that are necessary for the installer.

Filling in the informations on your Organization

Filling in the informations on your Organization

WAPT Agent informations

Value

Description

Required

Enterprise

Authorized packages certificates bundle

Defines the folder of trusted certificates.

feature available

Include non CA too

Defines whether to include local WAPT certificate.

feature not available

Main WAPT repository address

Defines the URL of the main WAPT repository.

feature available

WAPT Server address

Defines the URL of the WAPT Server.

feature available

Verify https server certificate

Defines whether the HTTPS certificate client authentication is activated on the WAPT Server.

feature not available

Use repository access rules

Defines whether repository access rules are to be used for replicating remote repositories.

feature not available

feature additional

Path to the WAPT https Servers CA certificates bundle

Defines the path to the certificates used for HTTPS verification.

feature not available

Use Kerberos for initial registration

Defines whether Kerberos authentication of the WAPT Agents is to be used with the WAPT Server.

feature not available

Organization

Defines the name of the Organization to identify the origin of WAPT packages.

feature not available

Use computer FQDN for UUID

Defines whether FQDNs are to be used for identifying WAPT Agents.

feature not available

Use random host UUID (for buggy BIOS)

Defines whether random UUIDs are to be used for identifying WAPT Agents.

feature not available

Always install these packages

Defines whether to automatically install group packages upon WAPT Agent installation.

feature not available

feature additional

Enable automatic install of packages based on AD Groups

Enables the installation of profile packages. This feature can degrade the performance of WAPT.

feature not available

feature additional

Allow remote reboot

Defines whether to allow remote reboots from the WAPT Console.

feature not available

feature additional

Allow remote shutdown

Defines whether to allow remote shutdowns from the WAPT Console.

feature not available

feature additional

Manage Windows updates with WAPT | Disable WAPT WUA | Don’t set anything

Enables or disables WAPT WUA.

feature available

feature additional

Allow all updates by default unless explicitely forbidden by rules

Defines whether to allow all Windows Updates if not forbidden by WUA rule packages.

feature not available

feature additional

Scan / download scheduling

Sets the Windows Update scan periodicity.

feature not available

feature additional

Minimum delay before installation (days after publish date)

Sets a deferred installation delay before publication.

feature not available

feature additional

Install pending Windows updates at shutdown

Forces updates to install when the host shuts down.

feature not available

feature additional

Waptupgrade package maturity

Allows to choose the maturity of the waptupgrade package.

feature not available

feature additional

Hint

For more information to Windows update section, refer to this article on configuring WAPTWUA on the WAPT Agent

Danger

  • Provide the password for unlocking the private key.

Providing the password for unlocking the private key

Providing the password for unlocking the private key

Progression of WAPT Agent installer building

Progression of WAPT Agent installer building

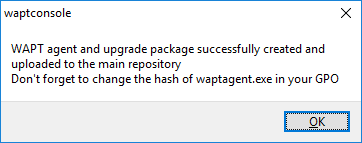

Once the WAPT Agent installer has finished building, a confirmation dialog pops up indicating that the waptagent binary has been successfully uploaded to https://srvwapt.mydomain.lan/wapt/.

Confirmation of the WAPT Agent loading onto WAPT repository

Confirmation of the WAPT Agent loading onto WAPT repository

Note

A warning shows up indicating that the GPO hash value should be changed. GPOs may be used to deploy the WAPT Agent on your Organization’s computer.

Attention

After building the Agent on your management PC, quit the WAPT Console and install the new WAPT Agent that has been generated on your WAPT management computer.

Initial Configuration

WAPT Enterprise feature only

It is possible to configure the agent for standard and advanced options via a GUI.

  • In the WAPT Console, go to Tools ‣ Edit initial configurations

Creating the initial configuration

Creating the initial configuration

  • Fill in the informations that are necessary for the configuration

Edit Initial Configuration

Edit Initial Configuration

Header

Value

Description

Advanced Editing

Use to display the options as in wapt-get.ini.

Add certificate

Add the deployed certificate with the configuration.

Load Json

Load a previously created configuration

Refresh Server Configuration

Refreshes the list of available configurations

+

Create a new configuration

-

Delete a configuration

Value

Description

Required

Enterprise

Main WAPT Repository URL

Defines the URL of the main WAPT repository.

feature available

WAPT Server URL

Defines the URL of the WAPT Server.

feature available

Verify https server certificate

Defines whether the HTTPS certificate client authentication is activated on the WAPT Server.

feature not available

Path to certificate authority for https servers

Defines the path to the certificates used for HTTPS verification.

feature not available

Allow remote reboot

Defines whether to allow remote reboots from the WAPT Console.

feature not available

feature additional

Allow remote shutdown

Defines whether to allow remote shutdowns from the WAPT Console.

feature not available

feature additional

Wake On Lan Relay

Activates the WoL functionality on secondary repositories.

feature not available

feature additional

Use computer FQDN for UUID

Defines whether FQDNs are to be used for identifying WAPT Agents.

feature not available

Always install these packages

Defines whether to automatically install group packages upon WAPT Agent installation.

feature not available

feature additional

Use repository rules

Defines whether repositories are replicated.

feature not available

feature additional

Use Kerberos

Defines whether Kerberos authentication of the WAPT Agents is to be used with the WAPT Server.

feature not available

Enable automatic install of packages based on AD Groups

Enables the installation of profile packages. This feature can degrade the performance of WAPT.

feature not available

feature additional

Maturities

List of package maturities than can be viewed and installed by WAPT Agent. Default value is PROD. Only DEV, PREPROD and PROD values are used by Tranquil IT, however any value can be used to suit your internal processes.

feature not available

Authentification type

Sets how the self service authentication works. Possible values are: system, waptserver-ldap or waptagent-ldap.

feature available

Packages Audit Period

Defines the frequency at which audits are triggered.

feature available

Column

Value

Description

Saved Properties

List of options with the configuration.

Certificate

List of certificate with the configuration.

Footer

Value

Description

Save on server

Save the configuration on the server

Export As Json File

Export the configuration in JSON

Close

Close the window

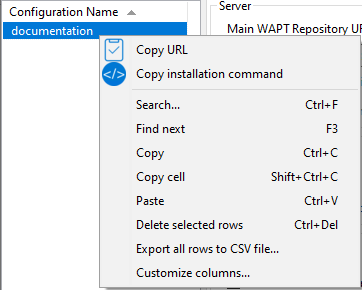

  • After configuration it is possible to copy commands by right clicking on the configuration

Copy command

Copy command

Copy options

Value

Description

Copy URL

Gives a download URL to retrieve the .json from the server.

Copy installation command

Gives a command to install the configuration for a WAPT agent.

Note

It is possible to install a blank agent and give it the copied installation command to provide the configuration.
